Description

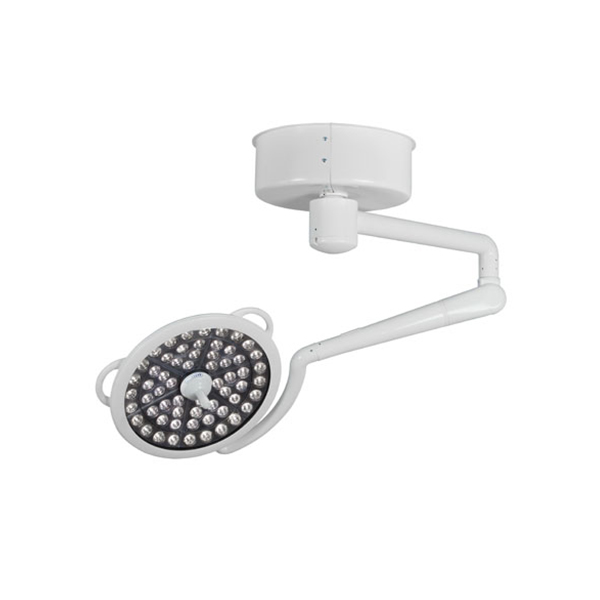

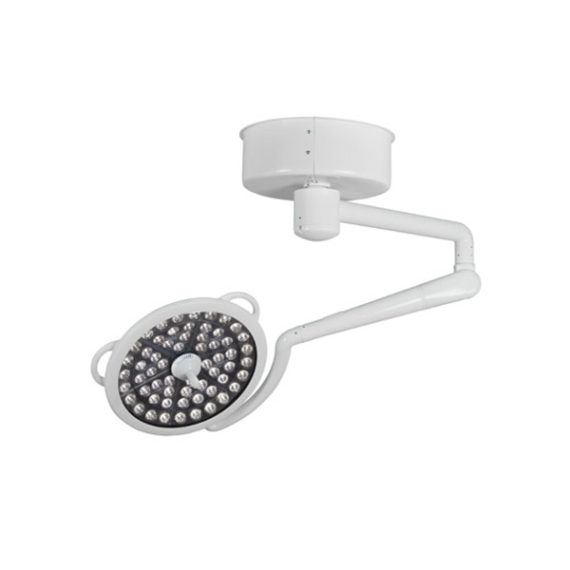

VISTOR MINOR SURGERY – SINGLE LIGHT HEAD
Application
The Single Light mount can be configured to have either the 20-inch or the 16-inch light head. Both lights feature continuous rotation of all the joints combined with ultra lightweight, easy-to-position counterbalance arms making these lights ideally suited to the needs of minor surgery.
SURGICAL LIGHTS – VISTOR MINOR SURGERY LIGHTS
The applications of the VistOR MS Minor Surgery Light extend throughout the hospital into ambulatory surgery. This light combines unparalleled performance in a compact lightweight light head and delivers it at an extremely affordable price.
Whether your needs are for a surgical light in the OR or Trauma, a treatment light in the ER or simply a mobile exam and procedure light the VistOR MS can be configured to meet your needs.
The VistOR MS light is a true example of how high quality and high performance can be delivered in an extremely affordable manner. This light has created a new standard in the industry being available as a Ceiling Mount, Wall Mount or Freestanding Mobile models thereby extending its range of applications beyond the hospital into ambulatory, small clinic and physician office settings.
SPECIFICATIONS:
| 16 inch | 20 inch | |
| Reflector Diameter | 16 inch | 20 inch |
| Lux Output | 72,000 | 102,000 |
| Pattern Size (in) | 6.5 – 9.0 | 6.5 – 9.0 |
| CRI | 90 | 90 |
| Depth of Field (in) | 48 | 48 |
| Color Temperature | 4,000°K | 4,000°K |
| Light Source | Quartz Halogen | Quartz Halogen |
| Bulb Life | 1,000 hours | 1,000 hours |
| Bulb Change | No tools needed | No tools needed |
| Number of Bulbs | Primary and back up | Primary and back up |
| Detachable Sterile Handle | Yes | Yes |
| Electrical Output | 120v 50/60 Hz; 220-240v 50/60 Hz | 120v 50/60 Hz; 220-240v 50/60 Hz |
| Bulb Voltage/Wattage | 23VAC/100W | 23VAC/100W |
| Intensity Levels | 4 selectable levels (50%, 70%, 85%, 100%) | 4 selectable levels (50%, 70%, 85%, 100%) |
| Mounting Options | Ceiling Mount, Wall Mount and Mobile | Ceiling Mount, Wall Mount and Mobile |
| Agency Approvals | UL 2601; CUL; CE Mark | UL 2601; CUL; CE Mark |
