Description

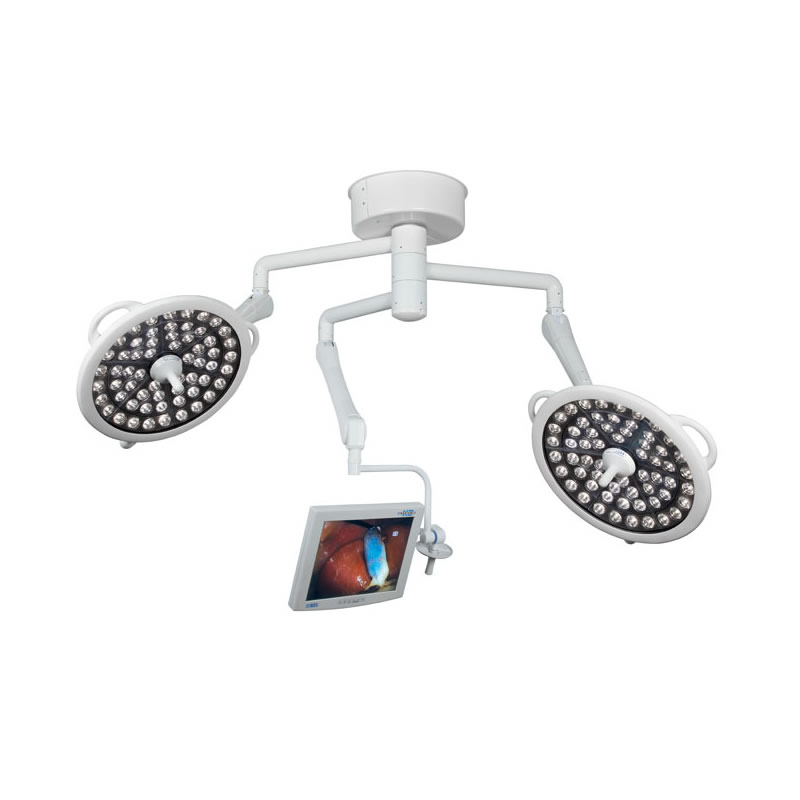

VISTOR MINOR SURGERY – DUAL LIGHT HEAD PLUS CAMERA
Application
The flexible nature of the VistOR MS allows you to configure any combination of the single or dual light with the integrated camera system. The freedom of movement afforded by mounting the camera on a third arm provides optimum positioning during a case to capture still images for documentation or continuous video for teaching.
SURGICAL LIGHTS – VISTOR MINOR SURGERY LIGHTS
The applications of the VistOR MS Minor Surgery Light extend throughout the hospital into ambulatory surgery. This light combines unparalleled performance in a compact lightweight light head and delivers it at an extremely affordable price.
Whether your needs are for a surgical light in the OR or Trauma, a treatment light in the ER or simply a mobile exam and procedure light the VistOR MS can be configured to meet your needs.
The VistOR MS light is a true example of how high quality and high performance can be delivered in an extremely affordable manner. This light has created a new standard in the industry being available as a Ceiling Mount, Wall Mount or Freestanding Mobile models thereby extending its range of applications beyond the hospital into ambulatory, small clinic and physician office settings.
V CAM SPECIFICATIONS:
| Camera Type | Single Chip π” CCD |
| Resolution | 537(h) x 505(y) NTSC |
| Lens | Protective, cleanable lens |
| Housing | Protective housing can be cleaned with a germicidal cleaner. |
| Zoom Range | 27x Optical |
| Focus | Auto Focus |
| Manual | Override |
| Video Output | Composite |
| Sterile Handle | Detachable and Sterilizable |
| Functions | Zoom, Manual/Auto Focus |
| Mounting Options | Adjustable Arm on the VistOR MS |
LIGHT HEAD SPECIFICATIONS:
| 16 inch | 20 inch | |
| Reflector Diameter | 16 inch | 20 inch |
| Lux Output | 72,000 | 102,000 |
| Pattern Size (in) | 6.5 – 9.0 | 6.5 – 9.0 |
| CRI | 90 | 90 |
| Depth of Field (in) | 48 | 48 |
| Color Temperature | 4,000°K | 4,000°K |
| Light Source | Quartz Halogen | Quartz Halogen |
| Bulb Life | 1,000 hours | 1,000 hours |
| Bulb Change | No tools needed | No tools needed |
| Number of Bulbs | Primary and back up | Primary and back up |
| Detachable Sterile Handle | Yes | Yes |
| Electrical Output | 120v 50/60 Hz; 220-240v 50/60 Hz | 120v 50/60 Hz; 220-240v 50/60 Hz |
| Bulb Voltage/Wattage | 23VAC/100W | 23VAC/100W |
| Intensity Levels | 4 selectable levels (50%, 70%, 85%, 100%) | 4 selectable levels (50%, 70%, 85%, 100%) |
| Mounting Options | Ceiling Mount, Wall Mount and Mobile | Ceiling Mount, Wall Mount and Mobile |
| Agency Approvals | UL 2601; CUL; CE Mark | UL 2601; CUL; CE Mark |
